Backplane / BP-11 Charge
Bring the
bridge home.
An always-powered magnetic iPad wall interface for Home Assistant. No case. No visible cable. No $300 mounting system.
BP-11.VX / REV C / 2026

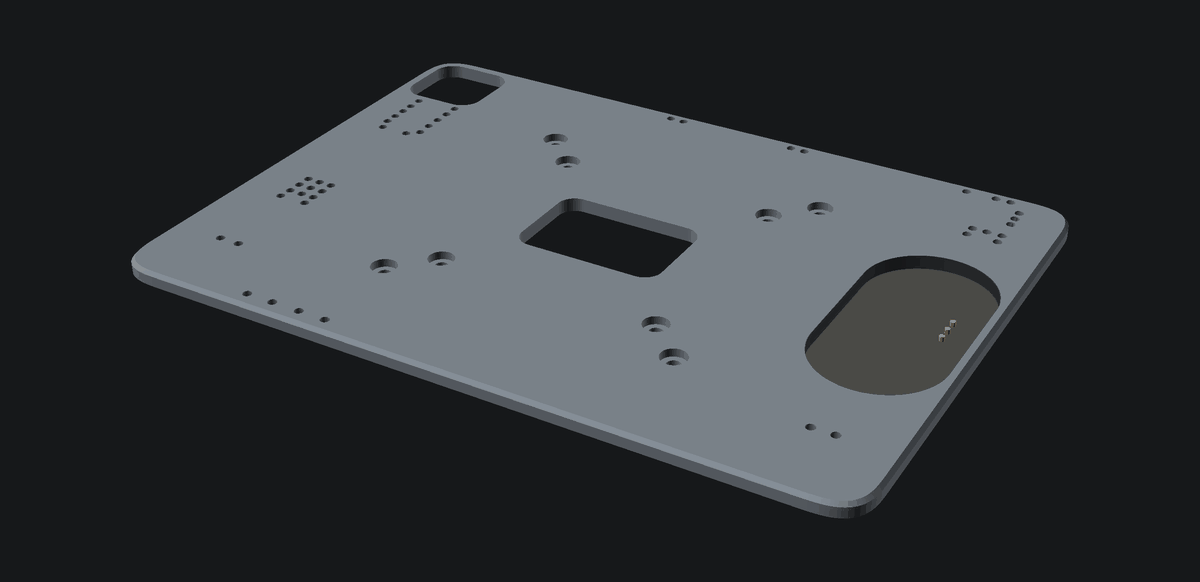

01 / What it isBP-11

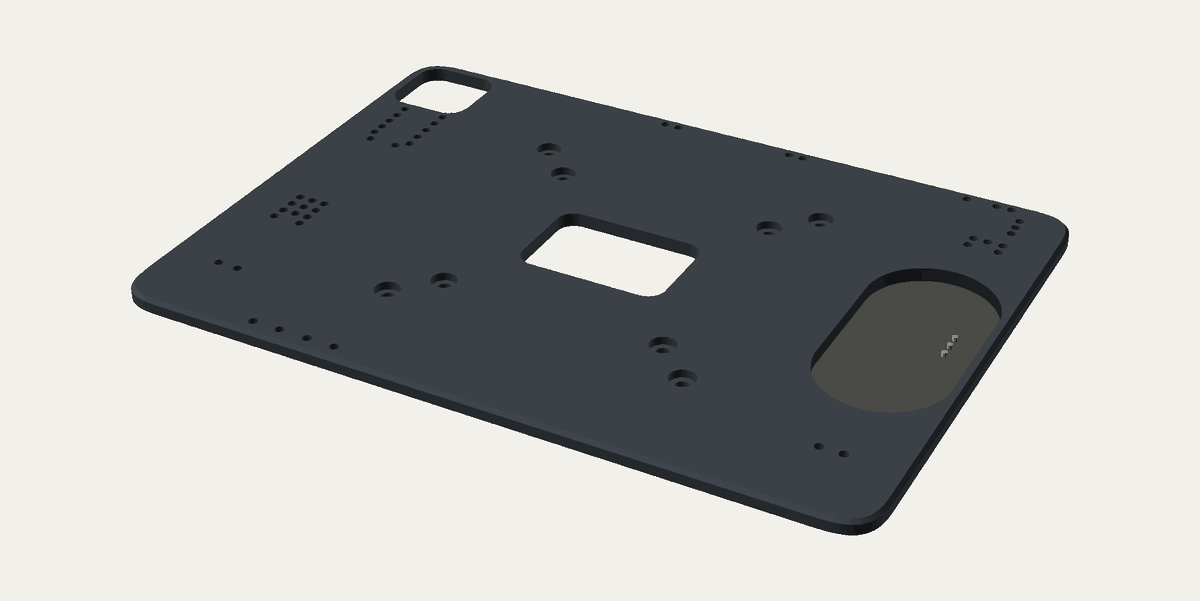

An iPad that lives
on the wall.
A machined magnetic plate holds a bare iPad flat against the wall and charges it through the Smart Connector. Take it off with one hand. Put it back without looking.
01 Wall panel
Your Home Assistant dashboard, always on, always charged, always in the same place.
02 Kitchen screen
Recipes, timers, music and the front-door camera at eye level, off the counter.
03 Still an iPad
Magnets hold it, they don't trap it. Lift it off the plate and it's a tablet again.
02 / Integrated chargingBP-11.PWR
The cable ends
inside the wall.

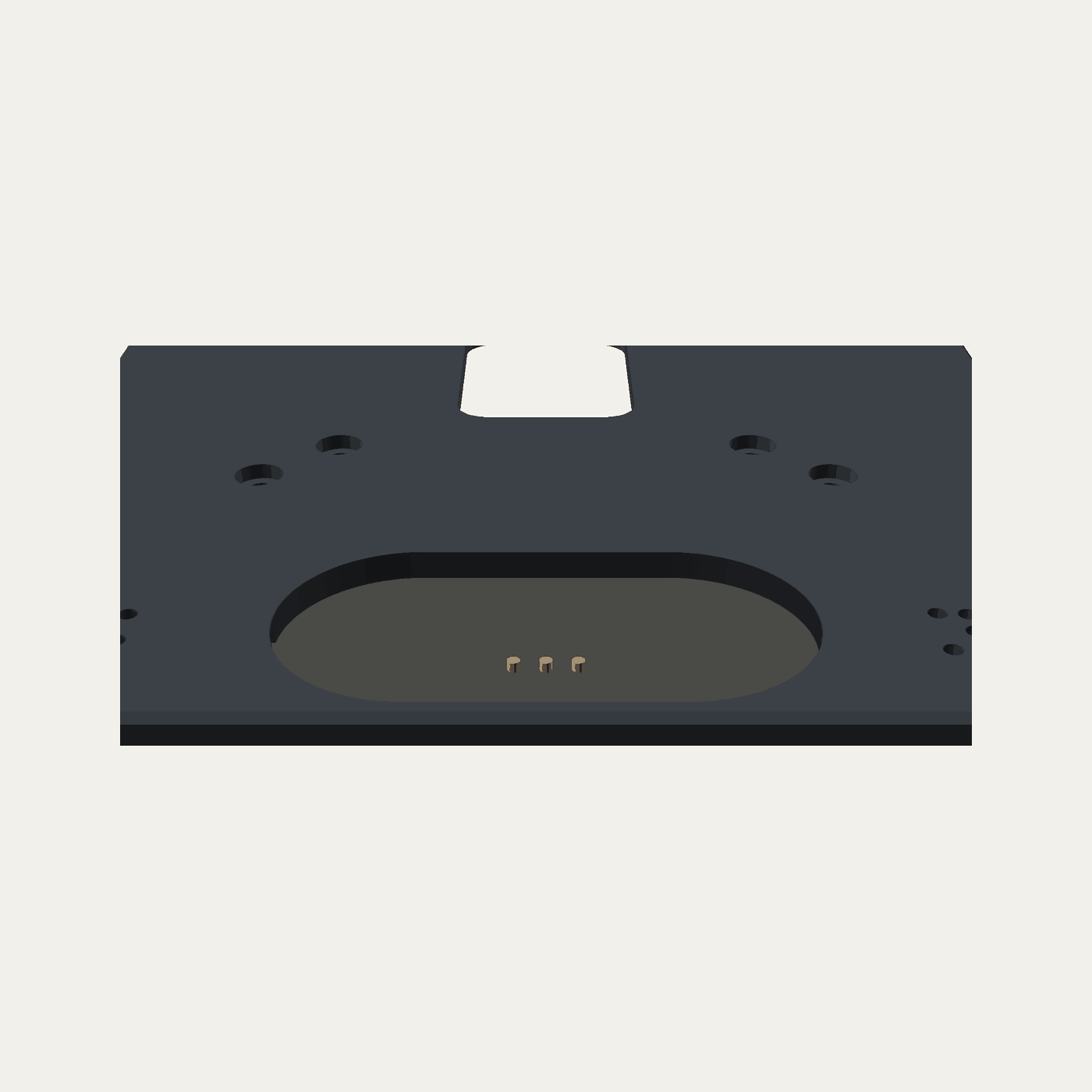

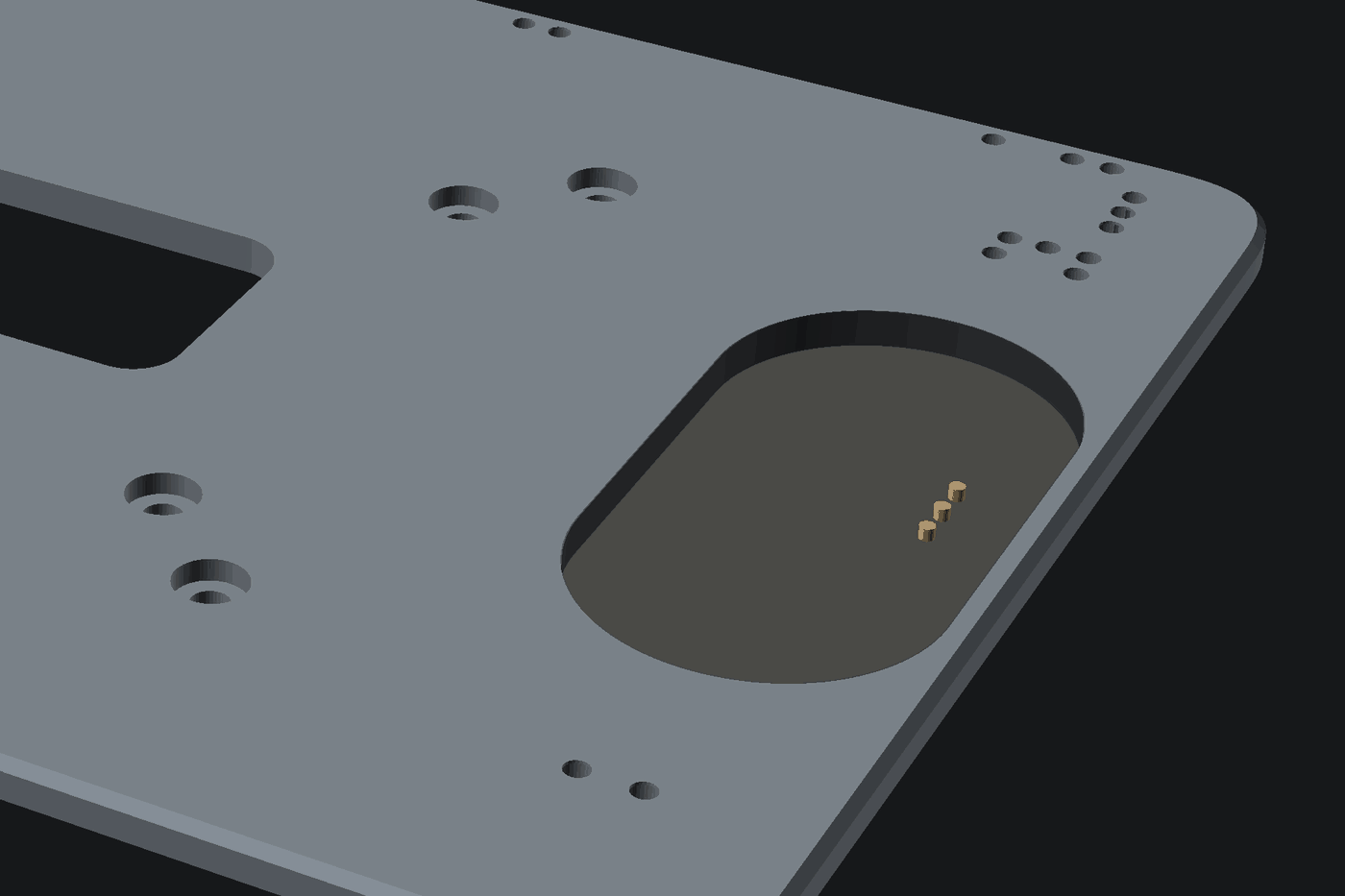

The charging puck drops into a milled recess exactly as deep as the puck is thick, so it finishes flush with the face of the plate. Three pogo contacts stand 1.5 mm proud and meet the iPad's Smart Connector as it seats. Nothing to plug in. Nothing hanging down.
Contacts: 3 × ∅1.8 mm / 4.5 mm pitch / 1.50 mm proud of face
03 / Price / USD
$99
Founders' price $89 — first 50 units
Shipping charged separately on single-unit orders.
04 / The alternativesMarket
What everyone else
charges for this.
Prices as published by each vendor in 2026 and converted at the rate of the day. Check current pricing before you compare — we'd rather you did.

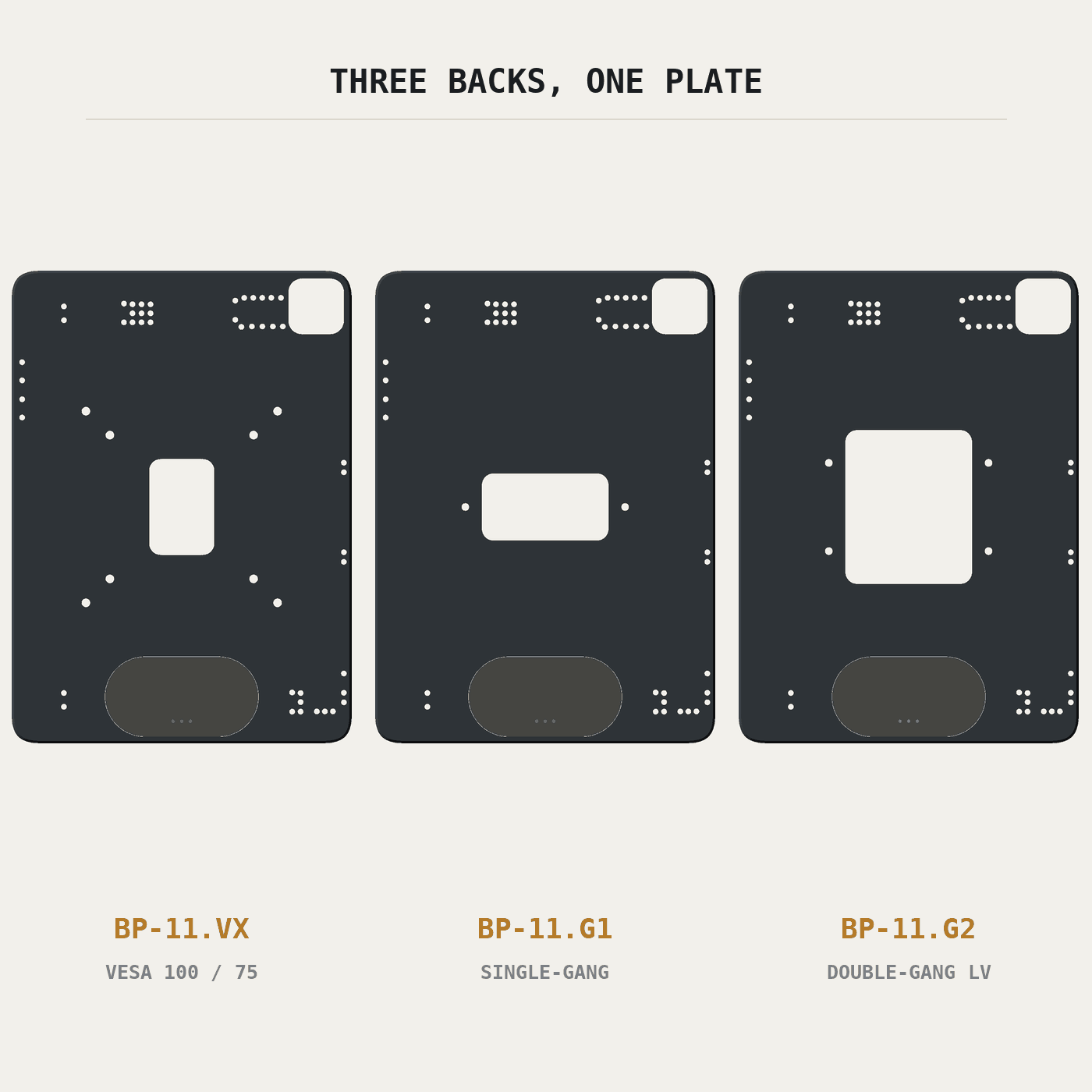

05 / MountingG1 · G2 · VX
Four ways onto
the wall.
Pick the back that matches what is already behind your drywall. All three mounting versions cost the same — the choice is structural, not commercial.

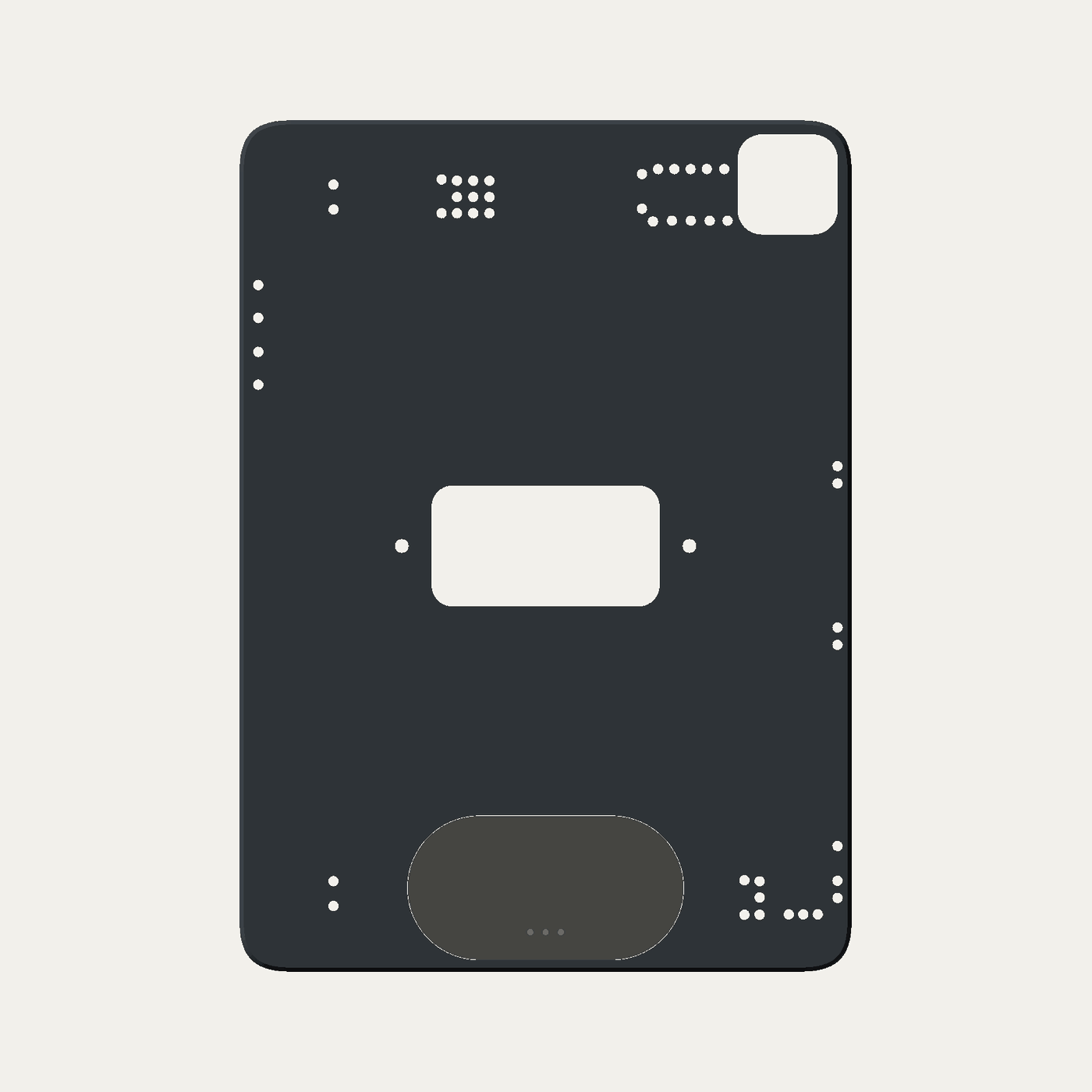

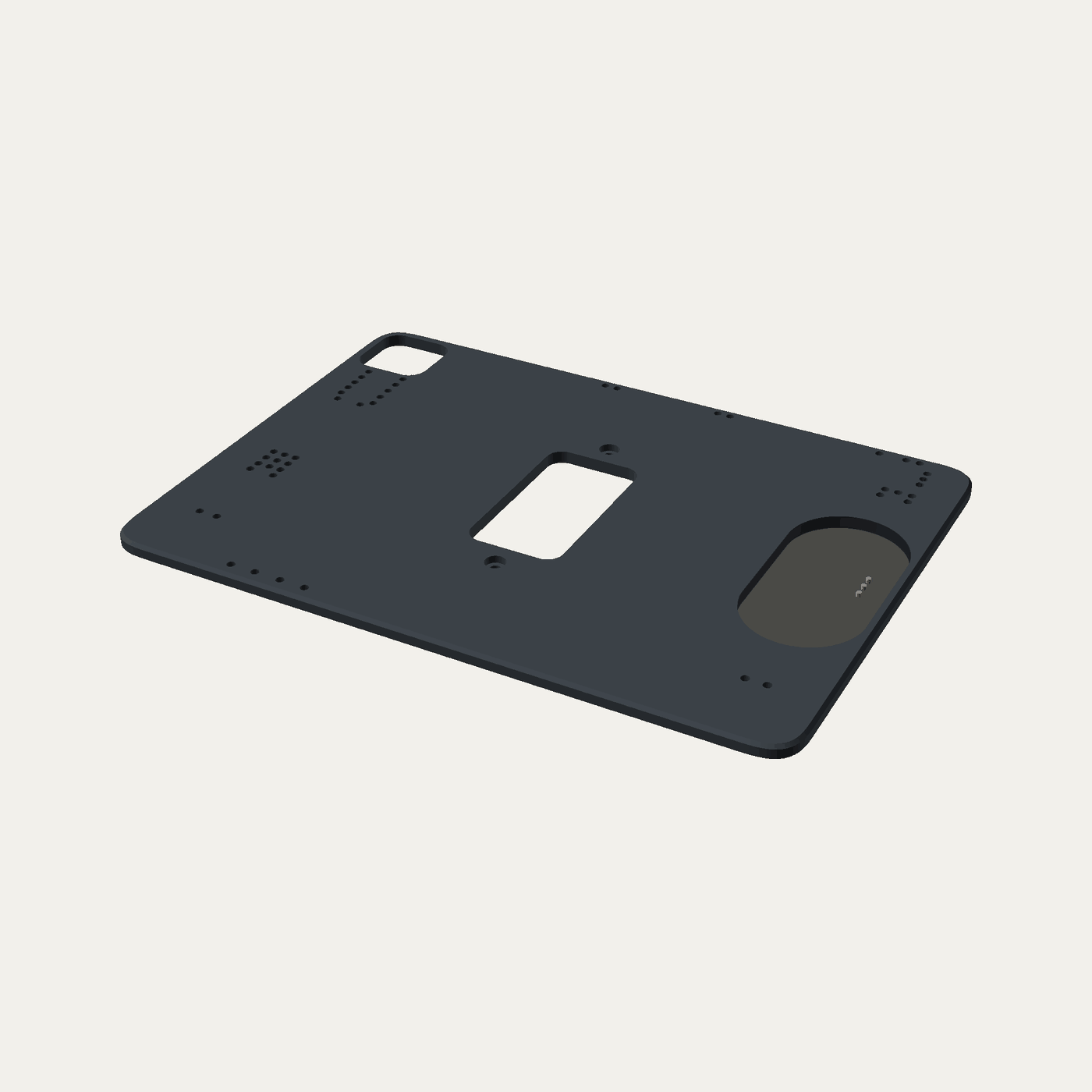

BP-11.G1
Single-gang
Mounts over one standard electrical box. The most common wall.

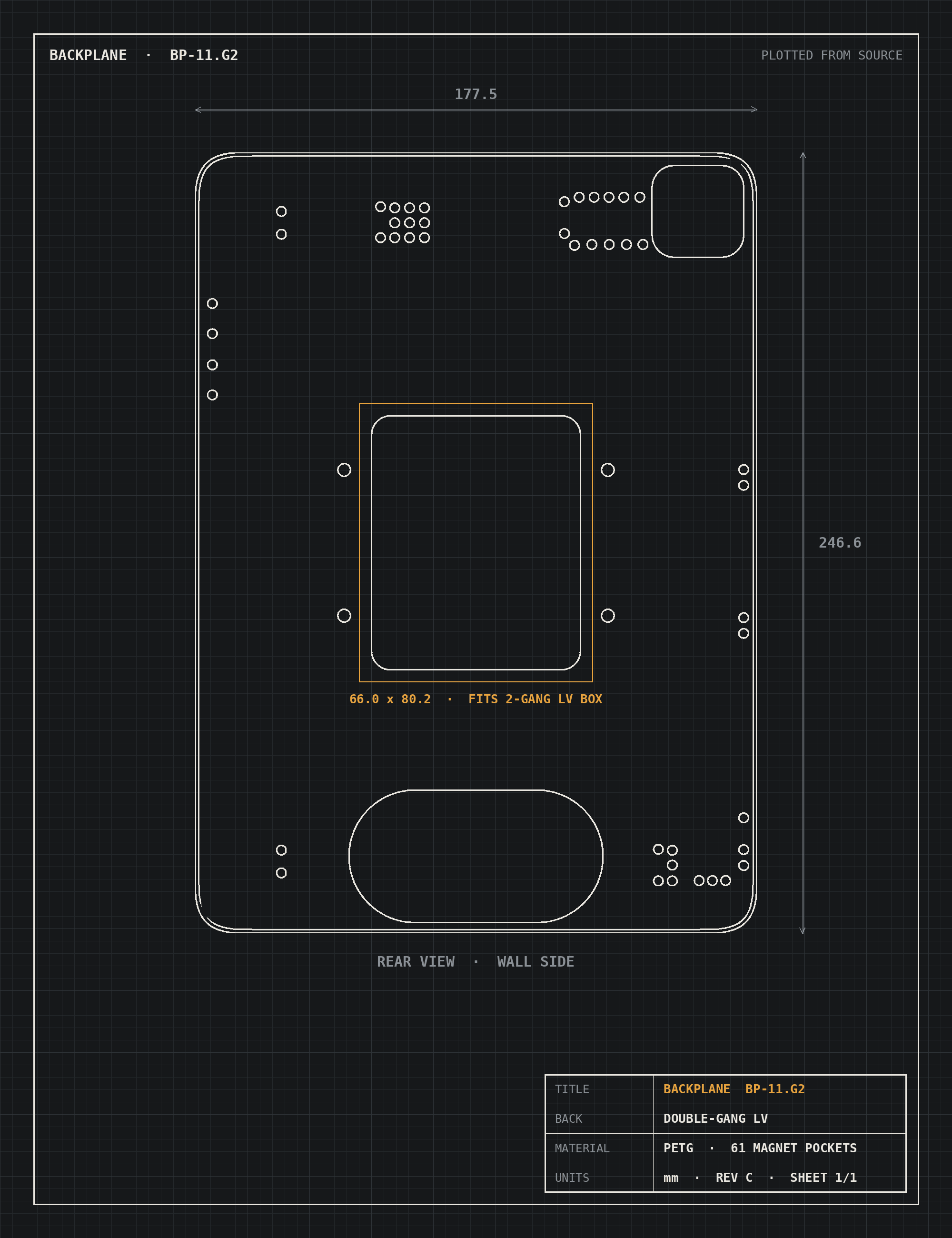

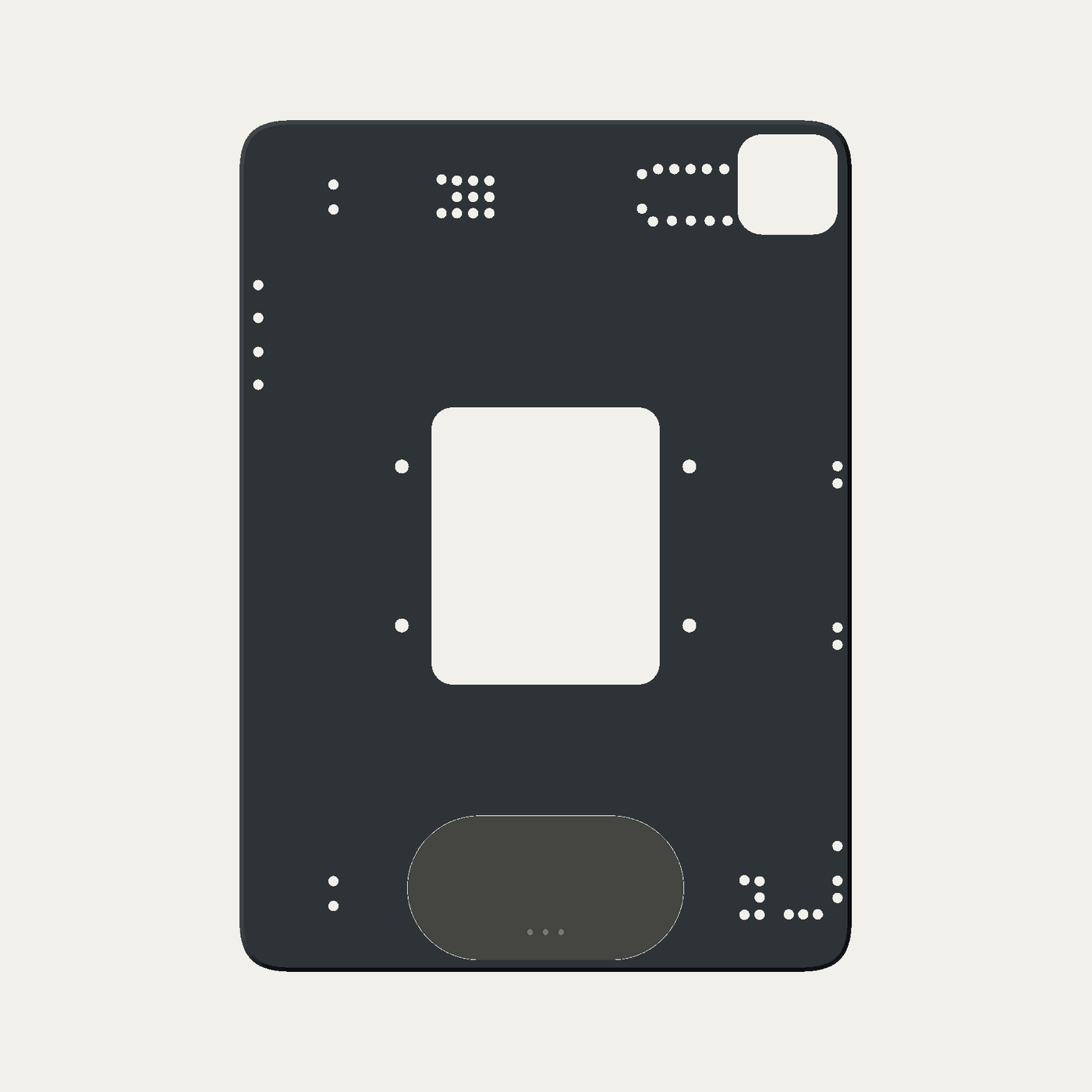

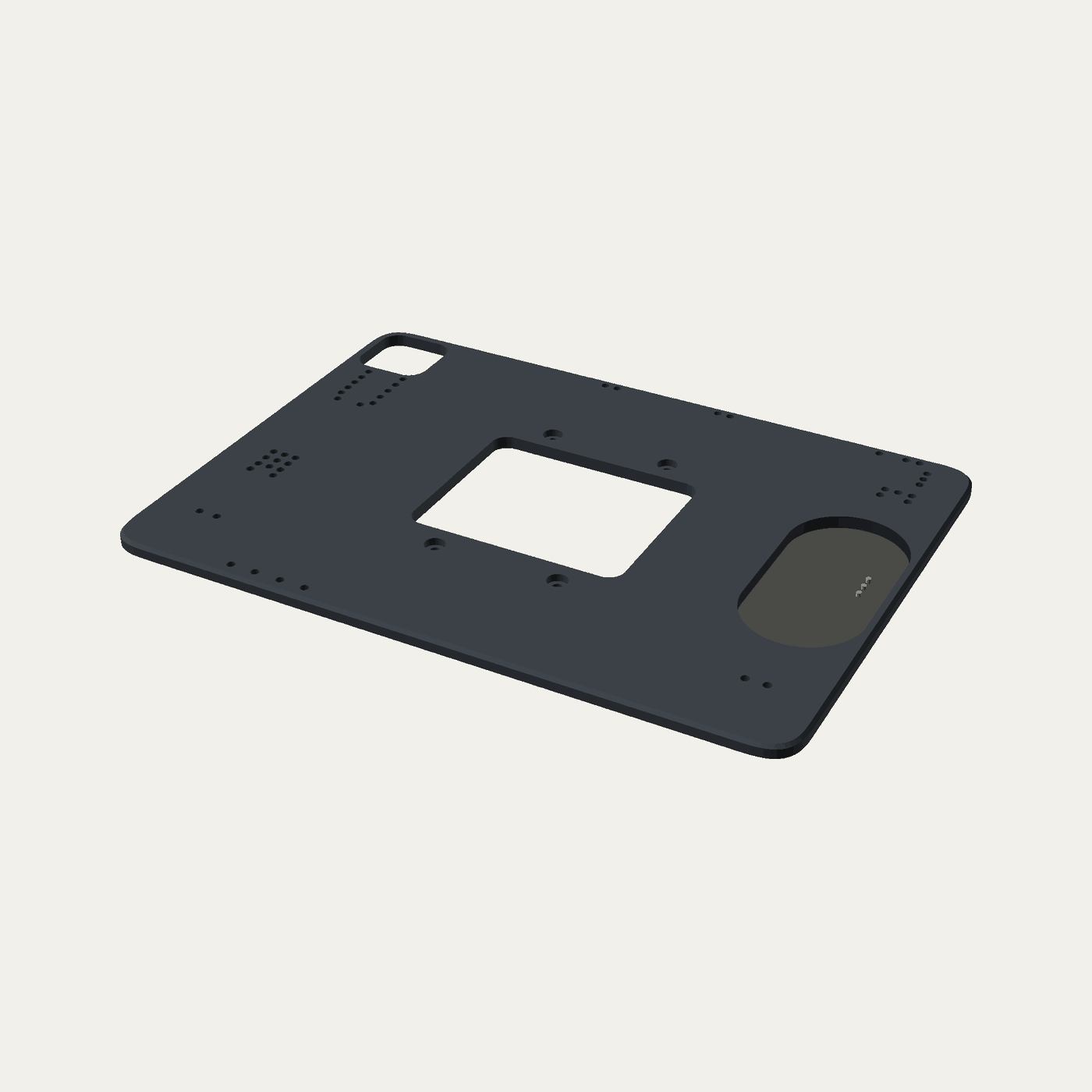

BP-11.G2
Double-gang
Two-gang low-voltage box, for a wider opening and a fatter cable run.

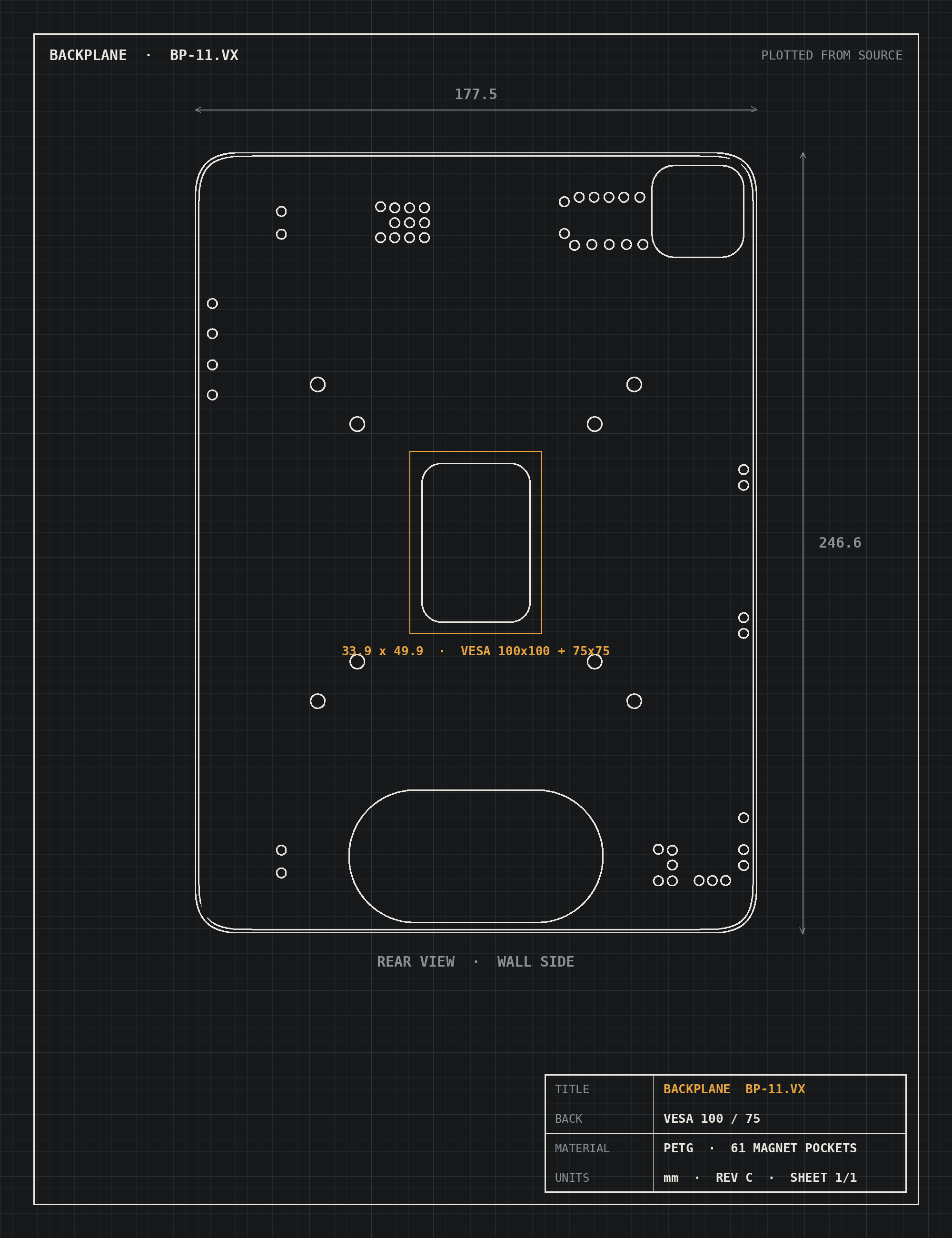

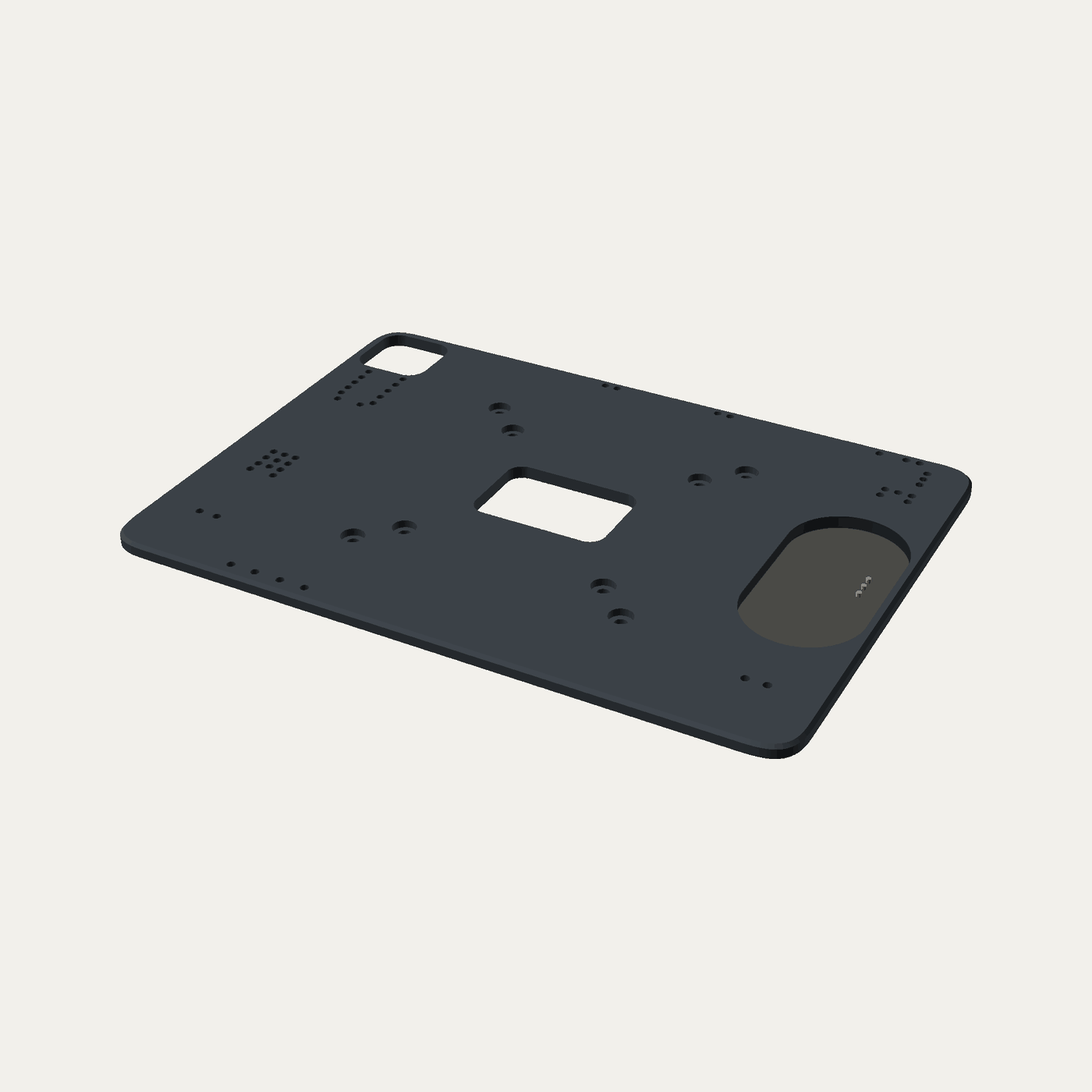

BP-11.VX
VESA 100 / 75
Bolts to any VESA arm, stand or articulating mount.
BP-11.PWR
Integrated charging
The charger recess and pogo contacts. Add to any of the three.
06 / SpecificationsRev C
Every number
on the part.
- Device
- iPad Pro 11″ M2 — 178.5 × 247.6 mm
- Plate
- 177.5 × 246.6 mm
- Thickness
- 4.65 mm
- Retention
- 61 × N52 neodymium
- Charger recess
- 80.0 × 41.6 × 4.65 mm
- Contacts
- 3 × ∅1.8 mm pogo, 4.5 mm pitch
- Contact height
- 1.50 mm proud
- Mounting
- VESA 100/75, 1-gang, 2-gang LV
- Material
- PETG
- Source
- Parametric OpenSCAD

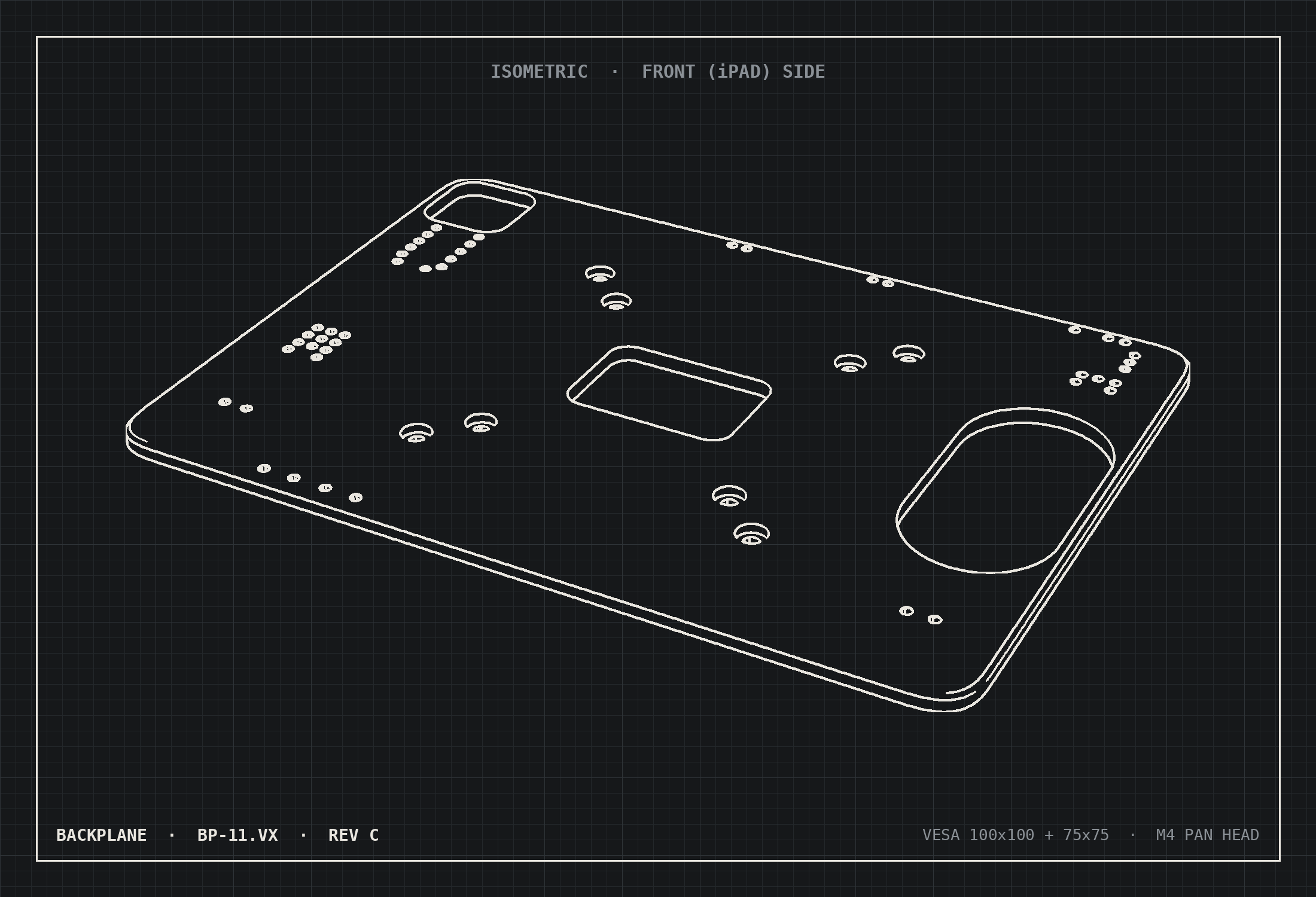

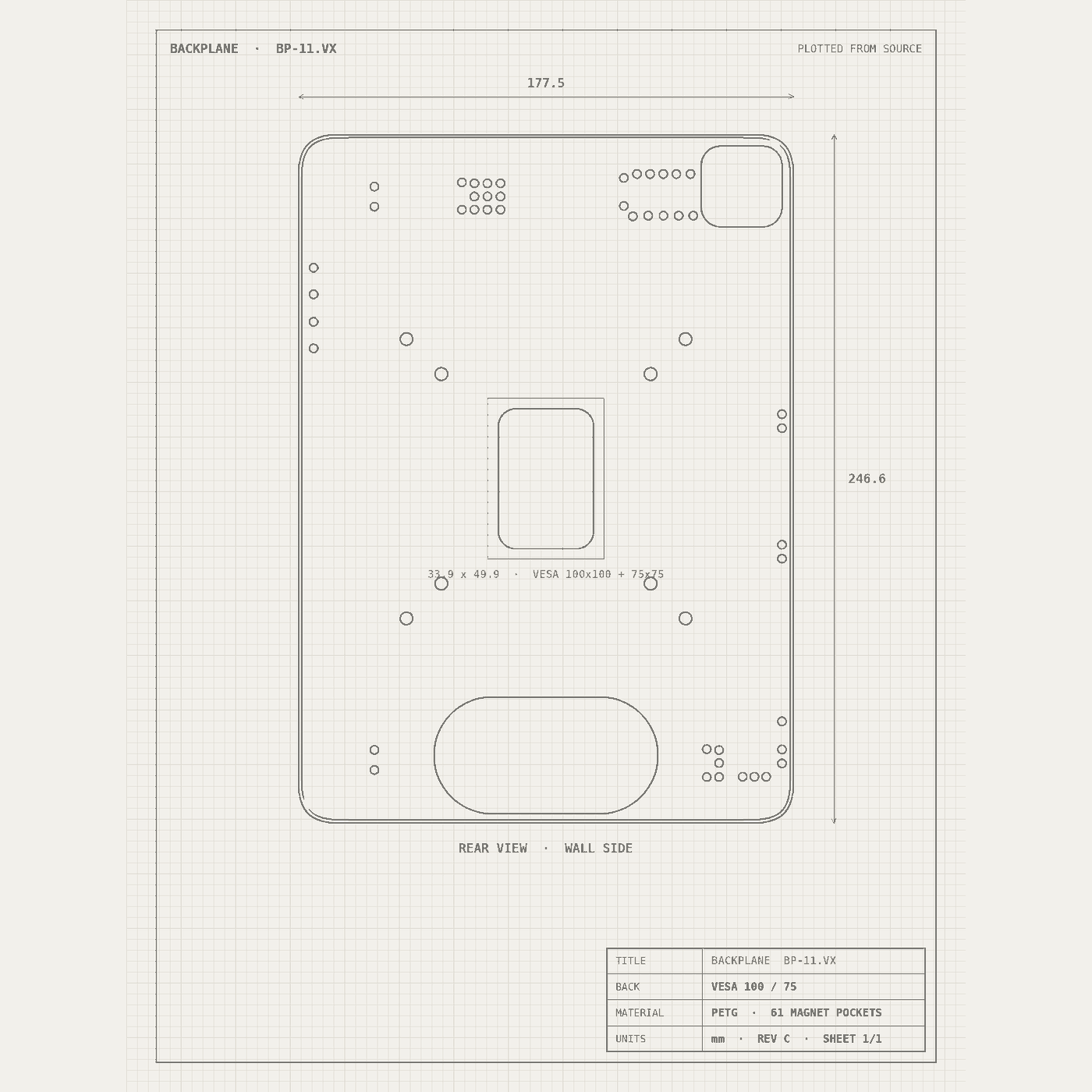

These are not illustrations. They are plotted straight from the parametric source that cuts the part you receive.
07 / Order
Order the plate.
Founders' price $89 on the first 50 units. Shipping charged separately on single-unit orders.
08 / Questions
Before you order.
Which iPad does it fit?
BP-11 is cut for the iPad Pro 11″ M2, used bare — no case. The geometry is parametric, so other sizes are a parameter change rather than a redesign. Ask if you need one.
Will the magnets hurt the iPad?
No. The array holds the aluminium back panel; there is no adhesive, no clamp and nothing that touches the screen or the ports. Nothing sticks and nothing scratches.
Does it charge while it's on the wall?
That is the whole point of BP-11.PWR. The puck sits flush in the recess and three pogo contacts, 1.5 mm proud of the face, meet the Smart Connector as the iPad seats itself.
Which mounting version do I need?
BP-11.VX if you are hanging it on a VESA arm or stand. BP-11.G1 or .G2 if you are mounting over an existing single- or double-gang box in the wall. All three are $99.
What arrives in the box?
The plate with the magnet array already fitted, the mounting hardware for the version you chose, and the charging puck on BP-11.PWR.
Can I print it myself?
The part is parametric OpenSCAD and the drawings on this page are plotted from that source. If you would rather print than buy, that has always been the point of the design.
Backplane / BP-11 Charge
Bring the bridge home.
$99. Founders' price $89 for the first 50 units.
Magnetic home interface system · BP-11.G1 · BP-11.G2 · BP-11.VX · BP-11.PWR
